Type
型號 |
Pressure Nominal(MPa)
公稱壓力 |
Working Temperature(℃)
工作溫度 |
Filter Net Eye Number
濾網(wǎng)目數(shù) |
APPlicable Media
適用介質(zhì) |
|
YG—W
|
2.0
|
300
|
20～150
|
Steam，Air，Water，Oil
|
|
YG—F
|
5．O
|
425
|
20～150
|
蒸汽、空氣、水、油
|
|
零件名稱
|
材 料
|
|
閥體
|
WCB、Q235、20#鋼、SS304、SS316
|
|
螺栓
|
45#鋼、304
|
|
濾芯網(wǎng)
|
SS304、SS316
|
|
墊片
|
柔性石墨、金屬纏繞墊、PTFE墊
|
|
Type
型號 |
Nominal Diameter(DN)公稱通徑
|
External dimensions(mm)外形尺寸
|
||
|
A
|
L
|
H
|
||
|

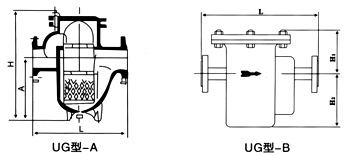

UG型一A
|
10
|
150
|
80
|
125
|
|
15
|
150
|
80
|
125
|
|
|
20
|
180
|
100
|
153
|
|
|
25
|
180
|
100
|
153
|
|
|
40
|
200
|
155
|
304
|
|
|
50
|
300
|
155
|
340
|
|
|
65
|
340
|
220
|
380
|
|
|
80
|
400
|
250
|
420
|
|
|
100
|
500
|
295
|
502
|
|
|
150
|
600
|
335
|
650
|
|
|
200
|
786
|
395
|
770
|
|
|
UG型一B
|
Nominal Diameter(DN)公稱通徑
|
External dimensions(mm)外形尺寸
|
||
|
L
|
H1
|
H2
|
||
|
15
|
270
|
90
|
145
|
|
|
20
|
270
|
90
|
145
|
|
|
25
|
270
|
90
|
145
|
|
|
32
|
320
|
125
|
175
|
|
|
40
|
320
|
125
|
175
|
|
|
50
|
320
|
125
|
175
|
|
|
65
|
430
|
140
|
220
|
|
|
80
|
430
|
140
|
220
|
|
|
100
|
430
|
140
|
220
|
|
|
125
|
460
|
160
|
235
|
|
|
150
|
460
|
170
|
235
|
|
|
200
|
460
|
190
|
235
|
|
