公稱壓力 /壓力等級PN |
GB/DlN/PNl6,2.5(MPa) ANSI 150Lb/JIS 10K |
法蘭尺寸 |
JB78/JB79 HG 5010 ANSI B165 JIS 2213-2214 |
壓力試驗(yàn) |
參照 GB/T 13927 API 598 |
襯里層檢驗(yàn) |
電火花檢驗(yàn) |
序號 |
零件名稱 |
灰鑄鐵 |
碳鋼 |
Z |
C | ||
1 |
閥體、閥蓋 |
HT250/A 126 |
WCB/A216 WCB |
2 |
過濾網(wǎng) |
PTFE(F4) | |
3 |
螺栓 /螺母 |
35/45、A193 B7/A194 | |
4 |
襯里層 |
FEP(F46)PCTFE(F3) |
公稱通徑 |

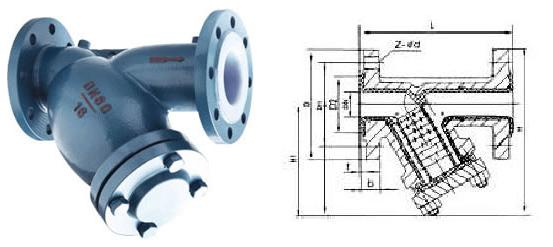

GL41F46-10/16/25型過濾器 | ||||||||||
DN (mm) |
NPS (in) |
L |
D |
D1 |
D2 |
b |
f |
H1 |
H |
Z-φd |
重量(kg) |
PNl.0~2.5(MPa) | |||||||||||
20 |
3/4 |
150 |
105 |
75 |
55 |
16 |
2 |
70 |
122 |
4-14 |
3.3 |
25 |
1 |
160 |
115 |
85 |
65 |
16 |
2 |
78 |
135 |
4-14 |
4.2 |
32 |
11/4 |
190 |
135 |
100 |
78 |
18 |
2 |
86 |
154 |
4-18 |
6.6 |
40 |
11/2 |
200 |
145 |
110 |
85 |
18 |
3 |
92 |
164 |
4-18 |
7.3 |
50 |
2 |
230 |
160 |
125 |
100 |
20 |
3 |
102 |
182 |
4-18 |
12 |
65 |
21/2 |
250 |
180 |
145 |
120 |
20 |
3 |
115 |
205 |
4-18 |
16 |
80 |
3 |
280 |
195 |
160 |
135 |
22 |
3 |
135 |
232 |
8-18 |
23 |
100 |
4 |
320 |
215 |
180 |
155 |
24 |
3 |
156 |
263 |
8-18 |
32 |
125 |
5 |
400 |
245 |
21O |
185 |
26 |
3 |
248 |
370 |
8-18 |
39 |
150 |
6 |
500 |
280 |
240 |
210 |
28 |
3 |
285 |
425 |
8-23 |
52 |
200 |
8 |
600 |
335 |
295 |
265 |
30 |
3 |
362 |
530 |
8-23 |
89 |
