手動
|

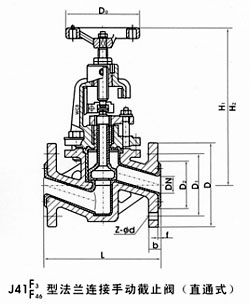

J41J J41F4
|
齒輪傳動
|
J441J J441F4
|
J45J J45FS
|
J541J J541FS
|
||
氣動
|
J6B41J J6B41F4
|
電動
|
J941J J941F4
|
遵循規(guī)范
|
STANDARD
|
設計于制造
|
GB 12233/GB 12235
|
結構長度
|
GB 12221(長-短系列)
|
法蘭尺寸
|
JB 78/JB 79(GB,HG,SH)
|
壓力試驗
|
GB/T 13927
|
標志
|
GB 12220
|
供貨
|
GB/T 12252
|
序號
|
零件名稱
|
灰鑄鐵
|
鑄鋼
|
不銹鋼
|
超低碳不銹鋼
|
||
Z
|
C
|
P
|
R
|
PL
|
RL
|
||
1
|
閥體、閥蓋
|
HT250
|
WCB
|
CF8
|
CF8M
|
CF3
|
CF3M
|
2
|
閥瓣、閥桿
|
35
|
1Cr13
|
1Cr18NI9
|
1Cr18Ni12Mo2Ti
|
00Cr18Ni10
|
00Cr17Ni14Mo2
|
3
|
活節(jié)螺栓
|
35
|
35
|
1Cr17Ni2
|
1Cr17Ni2
|
1Cr17Ni2
|
1Cr17Ni2
|
4
|
襯里層/閥座
|
襯硬橡膠(NR)FEP(F46) PCTFE(F3)PFA(可溶性聚四氟乙烯)
|
|||||
5
|
填料
|
PTFE(F4) PTFE(F4)
|
|||||
6
|
填料壓蓋
|
WCB
|
WCB
|
CF8
|
CF8M
|
CF3
|
CF3M
|
7
|
閥桿螺母
|
ZCuAl10Fe3 ZCuAl10Fe3
|
|||||
8
|
螺栓
|
35
|
35
|
1Cr17Ni2
|
1Cr17Ni2
|
1Cr17Ni9Ti
|
1Cr17Ni9Ti
|
9
|
螺母
|
45
|
45
|
0Cr18Ni9
|
0Cr18Ni9
|
0Cr18Ni9
|
0Cr18Ni9
|
10
|
手輪
|
HT200
|
HT200
|
WCC
|
WCC
|
WCC
|
WCC
|
公稱通徑
|
標準值
|
參考值
|
||||||||||
DN
(mm)
|
NPS
(inch)
|
L
|
D
|
D1
|
D2
|
f
|
b
|
Z-φd
|
W
|
D0
|
H
|
WT(Kg)
|
PN 1.0MPa
|
||||||||||||
15
|
1/2
|
130
|
95
|
65
|
45
|
2
|
14
|
4-φ14
|
100
|
235
|
260
|
6.5
|
20
|
3/4
|
150
|
105
|
75
|
55
|
2
|
16
|
4-φ14
|
100
|
240
|
265
|
7
|
25
|
1
|
160
|
115
|
85
|
65
|
2
|
16
|
4-φ14
|
120
|
245
|
270
|
7.87
|
32
|
11/4
|
180
|
135
|
100
|
78
|
2
|
18
|
4-φ18
|
140
|
255
|
285
|
11
|
40
|
11/2
|
200
|
145
|
110
|
85
|
3
|
18
|
4-φ18
|
140
|
285
|
315
|
13
|
50
|
2
|
230
|
160
|
125
|
100
|
3
|
20
|
4-φ18
|
160
|
295
|
330
|
15
|
65
|
21/2
|
290
|
180
|
145
|
120
|
3
|
20
|
4-φ18
|
180
|
350
|
395
|
23
|
80
|
3
|
310
|
195
|
160
|
135
|
3
|
22
|
4-φ18
|
240
|
395
|
445
|
38
|
100
|
4
|
350
|
215
|
180
|
155
|
3
|
22
|
8-φ18
|
240
|
450
|
490
|
42
|
125
|
5
|
400
|
245
|
210
|
185
|
3
|
24
|
8-φ18
|
280
|
525
|
555
|
55
|
150
|
6
|
480
|
280
|
240
|
210
|
3
|
24
|
8-φ23
|
320
|
605
|
645
|
77
|
200
|
8
|
495
|
335
|
295
|
265
|
3
|
26
|
8-φ23
|
360
|
645
|
765
|
135
|
250
|
10
|
622
|
390
|
350
|
320
|
3
|
28
|
12-φ23
|
400
|
685
|
805
|
220
|
300
|
12
|
698
|
440
|
400
|
368
|
4
|
28
|
12-φ23
|
400
|
710
|
814
|
277
|
350
|
14
|
787
|
500
|
460
|
428
|
4
|
30
|
16-φ23
|
450
|
750
|
855
|
320
|
PN 1.6MPa
|
||||||||||||
15
|
1/2
|
130
|
95
|
65
|
45
|
2
|
14
|
4-φ14
|
100
|
240
|
265
|
7
|
20
|
3/4
|
150
|
105
|
75
|
55
|
2
|
16
|
4-φ14
|
100
|
245
|
270
|
7.6
|
25
|
1
|
160
|
115
|
85
|
65
|
2
|
16
|
4-φ14
|
120
|
250
|
270
|
8.2
|
32
|
11/4
|
180
|
135
|
100
|
78
|
2
|
18
|
4-φ18
|
140
|
260
|
290
|
12
|
40
|
11/2
|
200
|
145
|
110
|
85
|
3
|
18
|
4-φ18
|
140
|
285
|
320
|
14
|
50
|
2
|
230
|
160
|
125
|
100
|
3
|
20
|
4-φ18
|
160
|
300
|
335
|
18
|
65
|
21/2
|
290
|
180
|
145
|
120
|
3
|
20
|
4-φ18
|
180
|
355
|
400
|
26
|
80
|
3
|
310
|
195
|
160
|
135
|
3
|
22
|
8-φ18
|
240
|
400
|
450
|
40
|
100
|
4
|
350
|
215
|
180
|
155
|
3
|
24
|
8-φ18
|
240
|
455
|
495
|
50
|
125
|
5
|
400
|
245
|
210
|
185
|
3
|
26
|
8-φ18
|
280
|
530
|
560
|
65
|
150
|
6
|
480
|
280
|
240
|
210
|
3
|
28
|
8-φ23
|
320
|
610
|
650
|
85
|
200
|
8
|
495
|
335
|
295
|
265
|
3
|
30
|
12-φ23
|
360
|
650
|
770
|
150
|
250
|
10
|
622
|
405
|
355
|
320
|
3
|
32
|
12-φ25
|
400
|
690
|
810
|
245
|
300
|
12
|
698
|
460
|
410
|
375
|
4
|
34
|
12-φ25
|
400
|
730
|
845
|
295
|
PN 2.5MPa
|
||||||||||||
15
|
1/2
|
130
|
95
|
65
|
45
|
2
|
16
|
4-φ14
|
120
|
240
|
265
|
7.5
|
20
|
3/4
|
150
|
105
|
75
|
55
|
2
|
16
|
4-φ14
|
120
|
245
|
270
|
8
|
25
|
1
|
160
|
115
|
85
|
65
|
2
|
16
|
4-φ14
|
140
|
250
|
275
|
9
|
32
|
11/4
|
180
|
135
|
100
|
78
|
2
|
18
|
4-φ18
|
160
|
260
|
290
|
13
|
40
|
11/2
|
200
|
145
|
110
|
85
|
3
|
18
|
4-φ18
|
180
|
285
|
320
|
15
|
50
|
2
|
230
|
160
|
125
|
100
|
3
|
20
|
4-φ18
|
180
|
300
|
335
|
20
|
65
|
21/2
|
290
|
180
|
145
|
120
|
3
|
22
|
8-φ18
|
240
|
355
|
400
|
28
|
80
|
3
|
310
|
195
|
160
|
135
|
3
|
22
|
8-φ18
|
280
|
400
|
450
|
42
|
100
|
4
|
350
|
230
|
190
|
160
|
3
|
24
|
8-φ23
|
320
|
455
|
495
|
57
|
125
|
5
|
400
|
270
|
220
|
188
|
3
|
28
|
8-φ25
|
320
|
530
|
560
|
71
|
150
|
6
|
480
|
300
|
250
|
218
|
3
|
30
|
8-φ25
|
360
|
610
|
650
|
90
|
