試驗項目
Test Item |
殼體試驗
Shell Test |
密封試驗
Seal Test |
上密封試驗
Back Seal Test |
氣密封試驗
Air Seal Test |
|||||
介質 Medium
|
水 Water
|
氣 Air
|
|||||||
單位 Unit
|
MPa
|
lbf/in2
|
MPa
|
lbf/in2
|
MPa
|
lbf/in2
|
MPa
|
lbf/in2
|
|
壓力等級 (磅級) Pressure (Class)
|
150
|
3.1
|
450
|
2.2
|
315
|
2.2
|
315
|
0.5-0.7
|
60-100
|
300
|
7.8
|
1125
|
5.6
|
815
|
5.6
|
815
|
|||
400
|
10.3
|
1500
|
7.6
|
1100
|
7.6
|
1100
|
|||
600
|
15.3
|
2225
|
11.2
|
1630
|
11.2
|
1630
|
|||
900
|
23.1
|
3350
|
16.8
|
2440
|
16.8
|
2440
|
|||
1500
|
38.4
|
5575
|
28.1
|
4080
|
28.1
|
4080
|
名稱
|
材料 Material
|
||||||||
閥體 Body
閥蓋 Bonnet 閘板 Wedge |
A216 WCB
|
A352 LCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
閥桿 Stem
|
A182 F6
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
||||
閥桿螺母 Stem ut
|
ZcuA/10Fe3 Bronze
|
||||||||
手輪 Hand Wheel
|
KTH350-10
|
||||||||
螺柱 Bonnet Bolt
|
A193-B7 A320-L7 A193-B8
|
||||||||
螺母 Nut
|
A194-2H A194-7 A1 94-8
|

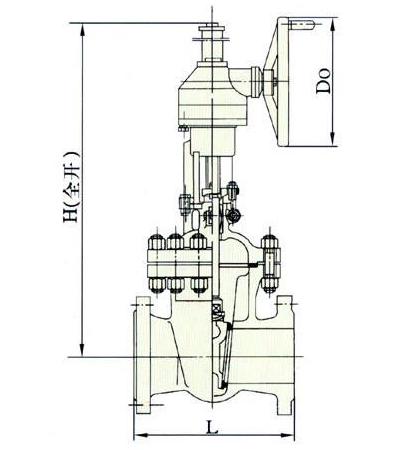

四、主要連接尺寸 Main Connection Dimensions
型號 Type
|
規格 Size(mm)
|
尺寸 Dimension(mm)
|
||||||||
inch
|
DN
|
L
|
D
|
D1
|
D2
|
b
|
z-Φd
|
H
|
Do
|
|
Z40W/H/Y-150Lb
Z540 W/H/Y-150Lb Z940 W/H/Y-150Lb |
1/2″
|
15
|
108
|
89
|
60.5
|
35
|
12
|
4-Φ15
|
180
|
120
|
3/4″
|
20
|
117
|
98
|
70
|
43
|
12
|
4-Φ15
|
185
|
120
|
|
1″
|
25
|
127
|
108
|
79.5
|
51
|
12
|
4-Φ15
|
225
|
140
|
|
11/4″
|
32
|
140
|
117
|
89
|
64
|
13
|
4-Φ15
|
245
|
160
|
|
11/2″
|
40
|
165
|
127
|
98.6
|
73.2
|
15
|
4-Φ15
|
310
|
180
|
|
2″
|
50
|
178
|
152
|
120.7
|
92
|
16
|
4-Φ19
|
335
|
200
|
|
21/2″
|
65
|
190
|
177.8
|
139.7
|
104.7
|
18
|
4-Φ19
|
350
|
220
|
|
3″
|
80
|
203
|
190.5
|
152.4
|
127
|
19
|
4-Φ19
|
420
|
240
|
|
4″
|
100
|
229
|
229
|
190.5
|
157
|
24
|
8-Φ19
|
485
|
280
|
|
5″
|
125
|
254
|
254
|
216
|
185.7
|
26
|
8-Φ22
|
515
|
300
|
|
6″
|
150
|
267
|
279
|
241.3
|
216
|
26
|
8-Φ22
|
565
|
320
|
|
8″
|
200
|
292
|
343
|
298.5
|
270
|
29
|
8-Φ22
|
760
|
400
|
|
10″
|
250
|
330
|
406
|
362
|
324
|
31
|
12-Φ25
|
950
|
450
|
|
12″
|
300
|
356
|
483
|
432
|
381
|
32
|
12-Φ25
|
1075
|
500
|
|
14″
|
350
|
381
|
533
|
476.3
|
413
|
35
|
12-Φ29
|
1160
|
500
|
|
16″
|
400
|
406
|
597
|
540
|
470
|
37
|
16-Φ29
|
1345
|
550
|
|
18″
|
450
|
432
|
635
|
578
|
533.4
|
40
|
16-Φ32
|
1450
|
550
|
|
20″
|
500
|
457
|
698.5
|
635
|
584
|
43
|
20-Φ32
|
1600
|
600
|
|
24″
|
600
|
508
|
813
|
749.3
|
692
|
48
|
20-Φ35
|
1720
|
650
|
|
26″
|
650
|
559
|
870
|
806
|
749.5
|
69
|
24-Φ35
|
1820
|
650
|
|
28″
|
700
|
610
|
927
|
863
|
800
|
72
|
28-Φ35
|
2000
|
700
|
|
30″
|
750
|
610
|
984
|
914.4
|
857
|
75
|
28-Φ35
|
2200
|
700
|
|
32″
|
800
|
660
|
1060 5
|
978
|
914.4
|
81
|
28-Φ42
|
2400
|
750
|
|
36″
|
900
|
711
|
1168
|
1086
|
1022.4
|
91
|
32-Φ42
|
2600
|
800
|
型號 Type
|
規格 Size(mm)
|
尺寸 Dimension(mm)
|
||||||||
inch
|
DN
|
d
|
D
|
D1
|
D2
|
b
|
z-Φd
|
H
|
Do
|
|
Z40W/H/Y-300Lb
Z540W/H/Y-300Lb Z940W/H/Y-300Lb |
1/2″
|
15
|
140
|
95
|
66.5
|
35
|
15
|
4-Φ15
|
190
|
120
|
3/4″
|
20
|
152
|
117
|
82.5
|
43
|
16
|
4-Φ19
|
200
|
120
|
|
1″
|
25
|
165
|
124
|
89
|
51
|
18
|
4-Φ19
|
225
|
140
|
|
11/4″
|
32
|
178
|
133
|
98.5
|
64
|
19
|
4-Φ19
|
255
|
160
|
|
11/2″
|
40
|
190
|
156
|
114.3
|
73.2
|
21
|
4-Φ22
|
320
|
180
|
|
2″
|
50
|
216
|
165
|
127
|
92
|
23
|
8-Φ19
|
360
|
220
|
|
21/2″
|
65
|
241
|
190.5
|
149.4
|
104.7
|
26
|
8-Φ22
|
400
|
240
|
|
3″
|
80
|
283
|
210
|
168.2
|
127
|
29
|
8-Φ22
|
455
|
280
|
|
4″
|
100
|
305
|
254
|
200.2
|
157
|
32
|
8-Φ22
|
500
|
300
|
|
5″
|
125
|
381
|
279
|
235
|
185.7
|
35
|
8-Φ22
|
555
|
320
|
|
6″
|
150
|
403
|
318
|
270
|
216
|
37
|
12-Φ22
|
650
|
350
|
|
8″
|
200
|
419
|
381
|
330
|
270
|
42
|
12-Φ25
|
900
|
450
|
|
10″
|
250
|
457
|
445
|
387.5
|
324
|
48
|
16-Φ29
|
970
|
500
|
|
12″
|
300
|
502
|
521
|
451
|
381
|
51
|
16-Φ32
|
1110
|
550
|
|
14″
|
350
|
762
|
584
|
514.5
|
413
|
54
|
20-Φ32
|
1220
|
600
|
|
16″
|
400
|
838
|
648
|
571.5
|
470
|
58
|
20-Φ35
|
1430
|
650
|
|
18″
|
450
|
914
|
711
|
628.7
|
533.4
|
61
|
24-Φ35
|
1510
|
700
|
|
20″
|
500
|
991
|
775
|
685.8
|
584
|
64
|
24-Φ35
|
1680
|
750
|
|
24″
|
600
|
1143
|
914.4
|
812.8
|
692
|
70
|
24-Φ41
|
1820
|
800
|
|
26″
|
650
|
1245
|
972
|
876
|
749 5
|
80
|
24-Φ45
|
1920
|
850
|
|
28″
|
700
|
1346
|
1035
|
939.8
|
800
|
86
|
28-Φ45
|
2100
|
900
|
