一、美標固定三段式球閥產品詳細介紹:
型號:Q47H/Y Q347H/Y
Q47H/Y固定式球閥關閉件球體繞閥體中心線作旋轉來達到開啟、關閉的一種閥門,本身結構緊湊,密封可靠,結構簡單,維修方便,密封面與球面常在閉合狀態,不易被介質沖蝕,易于操作和維修,適用于水、溶劑、酸和天然氣等一般工作介質,而且還適用于工作條件惡劣的介質,如氧氣、過氧化氫、甲烷和乙烯等,在各行業得到廣泛的應用
1.美標固定三段式球閥所有部件均為鍛件
2.采用下裝式閥桿,設備倒密封結構
3.采用鑲嵌式閥座,閥座背后設備O型圈,確保介質不外漏
4.密封面采用尼龍 1010,它的磨擦系數通常為巴氏合金的1/3,因此它是一種自然滑性材料。但抗彎曲強度和沖擊強度及較高的延性,與金屬不相上下。
二、主要零件材料Materials for Main Parts
名稱Part | WCB類 | CF8類 | CF3類 | CF8M類 | CF3M類 | |
閥體左體Body&Body cap | A216-WCB | A315-CF8 | A35-CF3 | A351-CF8M | A351-CF3M | |
球體Ball | B2-B8 | A105-1025 | A182-F304L | A182-F304L | A132-F316 | A182-F316L |
B8以上 | A216-WCB | A351-CF8M | A351-CF3 | A351-CF8M | A351-CF3M | |
閥桿Steml | A182-F6a | A182-F304 | A182-F304L | A182-F336 | A182-F316L | |
閥座Seat | PTFE/增強PTFE/NYLIV PTFE/Reinforced PTFE/Nyion | |||||
閥座支承圈Seat Retainer | A105-1025 | A182-F304 | A182-F304L | A182-F316 | A182-F316L | |
彈簧Spring | 3yc-7/17-49H | |||||
O形圈O-RING | NBR | 氟橡膠Viton | ||||
螺柱Stud | A193-B7 | A193-B8 | ||||
螺母Nut | A194-2H | A194-8 |
應用規范
設計制造按:AP16D/ANSB16.34,GB12237-89
結構長度按:AP16D/ANSIB16.10,GB12221-89
法蘭尺寸按:ANSIB16.5,JB79-59,GB9113-88
檢查試驗按:AP16d/AP1598 ZBJ16006
使用溫度:-28~150℃(標準型)-28~350℃(高溫)低溫(請注明溫度)
Applying specification
Design and manufacturing conform to:AP16D/ANSB16.34,GB12237-89
The face fo face dimensions conform fo:AP16D/ANSIB16.10,GB12221-89
The dimensions of flangesconform:ANSIB16.5,JB79-59,GB9113-88
Inspectionand Test conform to:AP16d/AP1598 ZBJ16006
Working temperature:-28~150℃(Standard typi) -28~350℃(High temperature type)
Please advise temperature degree for low temperature of Main Part:

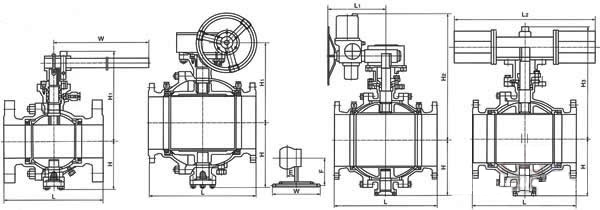

三、主要尺寸及重量Main dimensions and Weight
公稱壓力 PN(Class) |
公稱通徑 DN |
L | d1 | D | D1 | D2 | D6 | f | f2 | b | Z-φd | H1 | H2 | ||
RF | BW | 全通徑 | 縮徑 | ||||||||||||
150LB | 1/2 | 108 | 140 | 13 | - | 89 | 60.5 | 35 | - | 2 | - | 12 | 4-15 | - | 59 |
3/4 | 117 | 152 | 19 | - | 98 | 70 | 43 | - | 2 | - | 12 | 4-15 | - | 63 | |
1 | 127 | 165 | 25 | - | 108 | 79.5 | 51 | - | 2 | - | 12 | 4-15 | - | 75 | |
11/4 | 140 | 178 | 32 | - | 117 | 89 | 64 | - | 2 | - | 13 | 4-15 | - | ||
11/2 | 165 | 190 | 38 | - | 127 | 98.5 | 73 | - | 2 | - | 15 | 4-15 | - | 95 | |
2 | 178 | 216 | 51 | - | 152 | 120.5 | 92 | - | 2 | - | 16 | 4-19 | - | 107 | |
21/2 | 190 | 241 | 64 | - | 178 | 139.5 | 105 | - | 2 | - | 18 | 4-19 | - | 142 | |
3 | 203 | 283 | 76 | 64 | 190 | 152.5 | 127 | - | 2 | - | 19 | 4-19 | - | 152 | |
4 | 229 | 305 | 102 | 76 | 229 | 190.5 | 157 | - | 2 | - | 24 | 8-19 | - | 178 | |
5 | 356 | 381 | 127 | 102 | 254 | 216 | 186 | - | 2 | - | 24 | 8-22 | - | 252 | |
6 | 394 | 457 | 152 | 127 | 279 | 241.5 | 216 | - | 2 | - | 26 | 8-22 | - | 272 | |
8 | 457 | 521 | 203 | 152 | 343 | 298.5 | 270 | - | 2 | - | 29 | 8-22 | - | 398 | |
10 | 533 | 559 | 254 | 203 | 406 | 362 | 324 | - | 2 | - | 31 | 12-26 | 335 | 495 | |
12 | 610 | 635 | 305 | 254 | 483 | 432 | 381 | - | 2 | - | 32 | 12-26 | 385 | 580 | |
14 | 686 | 762 | 337 | 305 | 533 | 476 | 412 | - | 2 | - | 35 | 12-29 | 430 | 625 | |
16 | 762 | 838 | 387 | 337 | 597 | 540 | 470 | - | 2 | - | 37 | 16-29 | 470 | 720 | |
18 | 864 | 914 | 438 | 337 | 635 | 578 | 533 | - | 2 | - | 40 | 16-32 | - | - | |
20 | 914 | 991 | 489 | 387 | 699 | 635 | 584 | - | 2 | - | 43 | 20-32 | 590 | 840 | |
24 | 1067 | 1143 | 591 | 489 | 813 | 749.5 | 692 | - | 2 | - | 48 | 20-35 | 700 | 1050 | |
300LB | 1/2 | 140 | 140 | 13 | - | 95 | 66.5 | 35 | - | 2 | - | 15 | 4-15 | - | 59 |
3/4 | 152 | 152 | 19 | - | 117 | 82.5 | 43 | - | 2 | - | 16 | 4-19 | - | 63 | |
1 | 165 | 165 | 25 | - | 124 | 89 | 51 | - | 2 | - | 18 | 4-19 | - | 75 | |
11/4 | 178 | 178 | 32 | - | 133 | 98.5 | 64 | - | 2 | - | 19 | 4-19 | - | - | |
11/2 | 190 | 190 | 38 | - | 156 | 114.5 | 73 | - | 2 | - | 19 | 4-22 | - | 95 | |
2 | 216 | 216 | 51 | - | 165 | 127 | 92 | - | 2 | - | 23 | 8-19 | - | 107 | |
21/2 | 241 | 241 | 64 | - | 190 | 149 | 105 | - | 2 | - | 26 | 8-22 | - | 142 | |
3 | 283 | 283 | 76 | 64 | 210 | 168.5 | 127 | - | 2 | - | 29 | 8-22 | - | 152 | |
4 | 305 | 305 | 102 | 76 | 254 | 200 | 157 | - | 2 | - | 32 | 8-22 | - | 178 | |
5 | 381 | 381 | 127 | 102 | 279 | 235 | 186 | - | 2 | - | 35 | 8-22 | - | 252 | |
6 | 403 | 457 | 152 | 127 | 318 | 270 | 216 | - | 2 | - | 37 | 12-22 | - | 272 | |
8 | 502 | 521 | 203 | 152 | 381 | 330 | 270 | - | 2 | - | 42 | 12-25 | - | 398 | |
10 | 568 | 559 | 254 | 203 | 445 | 387.5 | 324 | - | 2 | - | 48 | 16-29 | 335 | 495 | |
12 | 648 | 635 | 305 | 254 | 521 | 451 | 381 | - | 2 | - | 51 | 16-32 | 385 | 580 | |
14 | 762 | 762 | 337 | 305 | 584 | 514.5 | 413 | - | 2 | - | 54 | 20-32 | 430 | 625 | |
16 | 838 | 838 | 387 | 337 | 648 | 571.5 | 470 | - | 2 | - | 58 | 20-35 | 470 | 720 | |
18 | 914 | 914 | 432 | 337 | 711 | 628.5 | 533 | - | 2 | - | 61 | 24-35 | - | - | |
20 | 99 | 991 | 483 | 387 | 775 | 686 | 584 | - | 2 | - | 64 | 24-35 | 590 | 840 | |
24 | 1143 | 1143 | 591 | 483 | 914 | 813 | 692 | - | 2 | - | 70 | 24-41 | 700 | 1050 | |
400LB | 1/2 | 140 | 140 | 13 | - | 95 | 66.7 | 35 | - | 6.4 | - | 14.5 | 4-15 | - | 59 |
3/4 | 152 | 152 | 19 | - | 117 | 82.5 | 43 | - | 6.4 | - | 16 | 4-19 | - | 63 | |
1 | 165 | 165 | 25 | - | 124 | 88.9 | 51 | - | 6.4 | - | 17.5 | 4-19 | - | 75 | |
11/4 | 178 | 178 | 32 | - | |||||||||||
11/2 | 190 | 190 | 38 | - | 156 | 114.3 | 73 | - | 6.4 | - | 22.5 | 4-22 | - | 95 | |
2 | 216 | 216 | 51 | - | 165 | 127 | 92 | - | 6.4 | - | 25.5 | 8-19 | - | 107 | |
21/2 | 241 | 241 | 64 | - | |||||||||||
3 | 283 | 283 | 76 | 64 | |||||||||||
4 | 305 | 305 | 102 | 76 | 254 | 200 | 157 | - | 6.4 | - | 35 | 8-26 | - | 178 | |
5 | 381 | 381 | 127 | 102 | |||||||||||
6 | 403 | 457 | 152 | 127 | 318 | 269.9 | 216 | - | 6.4 | - | 41.5 | 12-26 | 250 | 300 | |
8 | 502 | 521 | 203 | 152 | 381 | 330.2 | 270 | - | 6.4 | - | 18 | 12-29 | 294 | 374 | |
10 | 568 | 559 | 254 | 203 | 445 | 387.3 | 324 | - | 6.4 | - | 54 | 16-32 | 370 | 445 | |
12 | 648 | 635 | 305 | 254 | 520 | 450.8 | 381 | - | 6.4 | - | 57.5 | 16-35 | 420 | 515 | |
14 | 762 | 762 | 337 | 305 | 585 | 514.3 | 413 | - | 6.4 | - | 60.5 | 20-35 | 460 | 550 | |
16 | 838 | 838 | 387 | 337 | 650 | 571.5 | 470 | - | 6.4 | - | 63.5 | 20-39 | 505 | 615 | |
18 | 914 | 914 | 432 | 337 | |||||||||||
20 | 991 | 991 | 483 | 387 | 775 | 685.8 | 584 | - | 6.4 | - | 70 | 24-42 | 630 | 810 | |
24 | 1143 | 1143 | 591 | 483 | 915 | 812.8 | 692 | - | 6.4 | - | 76.5 | 24-48 | 825 | 1010 |
四、主要尺寸及重量Main dimensions and Weight
公稱壓力 PN(Class) |
公稱通徑 DN |
L | d1 | D | D1 | D2 | D6 | f | f2 | b | ZZ-φd | H1 | H2 | ||
RF | BW | 全通徑 | 縮徑 | ||||||||||||
600LB | 1/2 | 165 | 165 | 13 | - | 95 | 66.5 | 35 | - | 6.4 | - | 15 | 4-15 | - | 59 |
3/4 | 191 | 191 | 19 | - | 118 | 82.5 | 43 | - | 6.4 | - | 16 | 4-19 | - | 63 | |
1 | 216 | 216 | 25 | - | 124 | 89 | 51 | - | 6.4 | - | 18 | 4-19 | - | 75 | |
11/4 | 229 | 229 | 32 | - | 133 | 98.5 | 64 | - | 6.4 | - | 21 | 4-19 | - | - | |
11/2 | 241 | 241 | 38 | - | 156 | 114.5 | 73 | - | 6.4 | - | 23 | 4-22 | - | 95 | |
2 | 292 | 292 | 51 | 38 | 165 | 127 | 92 | - | 6.4 | - | 26 | 8-19 | - | 107 | |
21/2 | 330 | 330 | 64 | 51 | 190 | 179 | 105 | - | 6.4 | - | 29 | 8-22 | - | 178 | |
3 | 356 | 356 | 76 | 64 | 210 | 168.5 | 127 | - | 6.4 | - | 32 | 8-22 | - | - | |
4 | 432 | 432 | 102 | 76 | 273 | 216 | 157 | - | 6.4 | - | 38 | 8-25 | - | - | |
6 | 559 | 559 | 152 | 127 | 356 | 292 | 216 | - | 6.4 | - | 48 | 12-29 | 250 | 300 | |
8 | 660 | 660 | 200 | 152 | 419 | 349 | 270 | - | 6.4 | - | 56 | 12-32 | 294 | 374 | |
10 | 787 | 787 | 248 | 200 | 508 | 432 | 324 | - | 6.4 | - | 64 | 16-35 | 370 | 445 | |
12 | 838 | 838 | 298 | 248 | 559 | 489 | 381 | - | 6.4 | - | 67 | 20-35 | 420 | 515 | |
14 | 889 | 889 | 327 | 298 | 603 | 527 | 413 | - | 6.4 | - | 70 | 20-38 | 460 | 550 | |
16 | 991 | 991 | 375 | 327 | 686 | 603 | 470 | - | 6.4 | - | 77 | 20-41 | 505 | 615 | |
18 | 1092 | 1092 | 432 | 327 | 743 | 654 | 533 | - | 6.4 | - | 83 | 20-45 | 630 | 810 | |
20 | 1194 | 1194 | 483 | 375 | 813 | 724 | 584 | - | 6.4 | - | 89 | 24-45 | - | - | |
900LB | 2 | 368 | 368 | 47 | 38 | 216 | 165.1 | 92 | - | 7.92 | - | 38.5 | 8-26 | - | - |
3 | 381 | 381 | 73 | 57 | 244 | 190.5 | 127 | 123.82 | 7.92 | - | 41.5 | 8-29 | 191 | 259 | |
4 | 457 | 457 | 98 | 73 | 292 | 234.5 | 157 | 149.22 | 7.92 | - | 44.5 | 8-32 | 216 | 297 | |
6 | 610 | 610 | 146 | 121 | 381 | 317.5 | 216 | 211.12 | 7.92 | - | 50 | 12-32 | 270 | 360 | |
8 | 737 | 737 | 190 | 146 | 470 | 393.7 | 270 | 269.88 | 7.92 | - | 63.5 | 12-39 | 322 | 394 | |
10 | 838 | 838 | 238 | 180 | 545 | 459.5 | 324 | 323.85 | 7.92 | - | 70 | 16-39 | 420 | 502 | |
12 | 965 | 965 | 282 | 238 | 610 | 533.4 | 381 | 381.00 | 7.92 | - | 79.5 | 20-39 | 470 | 572 | |
14 | 1029 | 1029 | 419.10 | 11.13 | - | 86 | 20-42 | 510 | 675 | ||||||
16 | 1130 | 1130 | 469.90 | 11.13 | - | 89 | 20-45 | 600 | 762 | ||||||
18 | 1219 | 1219 | 533.40 | 12.7 | - | 102 | 20-51 | 700 | 866 | ||||||
20 | 1334 | 1334 | 584.20 | 12.7 | - | 108 | 20-54 | 720 | 894 | ||||||
1500LB | 2 | 368 | 368 | 47 | 47 | 216 | 165.1 | 124 | 95.25 | 7.92 | - | 38.5 | 8-26 | 126 | 217 |
3 | 470 | 470 | 73 | 73 | 267 | 203.2 | 168 | 136.92 | 7.92 | - | 48 | 8-32 | 191 | 259 | |
4 | 564 | 564 | 98 | 98 | 311 | 245.5 | 194 | 161.92 | 7.92 | - | 54 | 8-35 | 216 | 297 | |
6 | 705 | 705 | 146 | 146 | 394 | 317.5 | 248 | 211.12 | 9.52 | - | 83 | 12-39 | 296 | 365 | |
8 | 832 | 832 | 190 | 190 | 483 | 393.7 | 318 | 269.88 | 11.13 | - | 92 | 12-45 | 378 | 475 | |
10 | 991 | 991 | 238 | 238 | 565 | 482.6 | 371 | 323.85 | 11.13 | - | 108 | 12-51 | 495 | 578 | |
12 | 1130 | 1130 | 282 | 282 | 675 | 571.5 | 438 | 381.00 | 14.27 | - | 124 | 12-54 | 542 | 696 | |
14 | 1257 | 1257 | 826 | 635 | 489 | 419.10 | 15.88 | - | 133.5 | 16-61 | 590 | 761 | |||
16 | 1384 | 1384 | 915 | 704.5 | 546 | 469.90 | 17.48 | - | 146.5 | 16-67 | 670 | 831 | |||
20 | 1664 | 1664 | 1170 | 990.6 | 673 | 584.20 | 17.48 | - | 178 | 16-80 | 750 | 950 |
訂貨須知:
1.產品型號與名稱 2.公稱通徑DN 3.額定流量系數KV 4.公稱壓力和壓差 5.閥體和閥內組件材料 6.流量特性 7.適用溫度 8.電源電壓和控制信號 9.是否帶附件
