零件名稱
Part name |
閥桿
Stem |
閥體
Body |
閥底座
Base |
填料
Packing |
填料閥蓋 Packing
bonnet |
手輪Handwheel
|
J49H-320-DN3
|
碳鋼
Carbon steel |
鉻不銹鋼
Cr. Stainless steel |
聚四氟乙稀,柔性石墨
PTFE,Soft graphite |
碳鋼Carbon steel
|
優(yōu)質(zhì)碳鋼
High grade carbon steel |
|
J49H-320P-DN6
|
鉻鎳不銹鋼
Cr. Ni Stainless stee |
鉻不銹鋼
Cr. Stainless steel |
鉻鎳不銹鋼
Cr. Ni Stainless steel |
不銹鋼Stainless steel
|
型號
Type |
公稱壓力PN Mpa
|
試驗壓力PS(Mpa)_Test pressure
|
工作壓力(Mpa) Working pressure
|
工作溫度(OC) Working temps.
|
適用介質(zhì)Applicable medium
|
||
殼體
Shell |
密封(液)Seal
|
密封(氣)Seal
|
|||||
J49H-320
|
32.0
|
48.0
|
35.2
|
0.6
|
32.0
|
P≤540OC
|
液化石油氣水,酸,蒸汽,油品等 Petroleum gas Water,As,Steam,Oil,etc.
|
J49H-320P
|
32.0
|
48.0
|
35.2
|
0.6
|
32.0
|
C≤425 OC
|

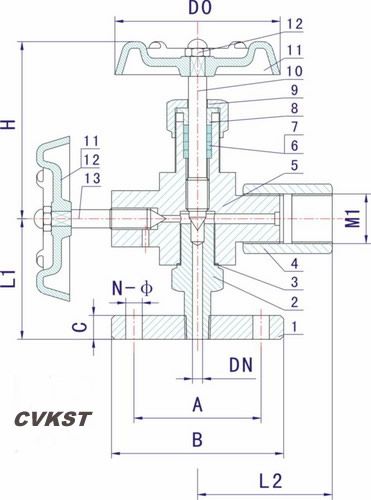

型號
Type |
公稱直徑DN(mm)
|
尺寸 Dimension
|
重量(kg)Weight
|
||||||||
M1
|
A
|
B
|
C
|
N-¢
|
L1
|
L2
|
H
|
D0
|
|||
J49H-320
|
DN3
|
M20×1.5
|
42
|
70
|
16
|
3-¢16
|
62
|
60
|
86
|
63
|
1.2
|
J49H-320P
|
DN6
|
M20×1.5
|
42
|
70
|
16
|
3-¢16
|
62
|
60
|
86
|
63
|
1.2
|
J49H-320P
|
DN10
|
M20×1.5
|
42
|
70
|
16
|
3-¢16
|
62
|
60
|
86
|
63
|
1.2
|
