公稱壓力(MPa)
|
16.0
|
20.0
|
25.0
|
35.0
|
殼體試驗(yàn)壓力(MPa)
|
24.0
|
30.0
|
37.5
|
52.5
|
密封試驗(yàn)壓力(MPa)
|
17.6
|
22.0
|
27.5
|
38.5
|
適用介質(zhì)
|
水、油品等非腐蝕性介質(zhì)
|
|||
適用溫度
|
-29℃-120℃
|
公稱壓力(MPa)
|
公稱通徑(mm)
|

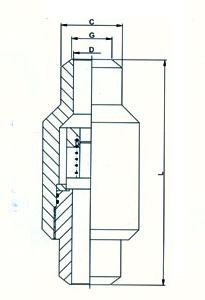

尺寸(mm)
|
|||
D
|
G
|
C
|
L
|
||
16.0
20.0 |
25
|
22
|
101.5
|
50.80
|
210
|
32
|
28
|
111
|
60.32
|
230
|
|
40
|
35
|
124
|
68.28
|
260
|
|
50
|
47
|
165
|
95.25
|
300
|
|
65
|
57
|
190.5
|
107.95
|
340
|
|
80
|
72
|
190.5
|
123.82
|
380
|
|
100
|
92
|
235
|
149.22
|
480
|
|
150
|
136
|
317.5
|
211.12
|
550
|
|
25.0
35.0 |
25
|
22
|
101.5
|
50.80
|
210
|
32
|
28
|
111
|
60.32
|
230
|
|
40
|
35
|
124
|
68.28
|
260
|
|
50
|
47
|
165
|
95.25
|
300
|
|
65
|
57
|
190.5
|
107.95
|
340
|
|
80
|
72
|
203
|
123.82
|
380
|
|
100
|
92
|
541.5
|
149.22
|
480
|
|
150
|
136
|
317.5
|
211.12
|
550
|
