序號(hào)
NO.
|
零件名稱
Part name
|
材質(zhì)
Material
|
1
|
法蘭 Flang
|
20# A105 SS304 SS304L SS316 SS316L
|
2
|
管接頭 Connector
|
20# A105 SS304 SS304L SS316 SS316L
|
3
|
密封圈 o-ring
|
橡膠Rubber
|
4
|
卡套 Ferrule
|
20# A105 SS304 SS304L SS316 SS316L
|
5
|
閥體 Body
|
20# A105 SS304 SS304L SS316 SS316L
|
6
|
填料墊 Packing Seat
|
PTFE 柔性石墨(Expanded Graphite)
金屬盤根(Matel and Graphite)
|
7
|
填料 Packing
|
PTFE 柔性石墨(Expanded Graphite)
|
8
|
填料壓蓋 Packing Gland
|
20# A105 SS304 SS304L SS316 SS316L
|
9
|
鎖緊螺母 Lock Nut
|
20# A105 SS304 SS304L SS316 SS316L
|
10
|
閥桿 Stem
|
20# A105 SS304 SS304L SS316 SS316L
|
11
|
手輪 Handle
|
20# A105 SS304 SS304L SS316 SS316L
|
12
|
帶帽螺母 Hooded Nut
|
20# A105 SS304 SS304L SS316 SS316L
|

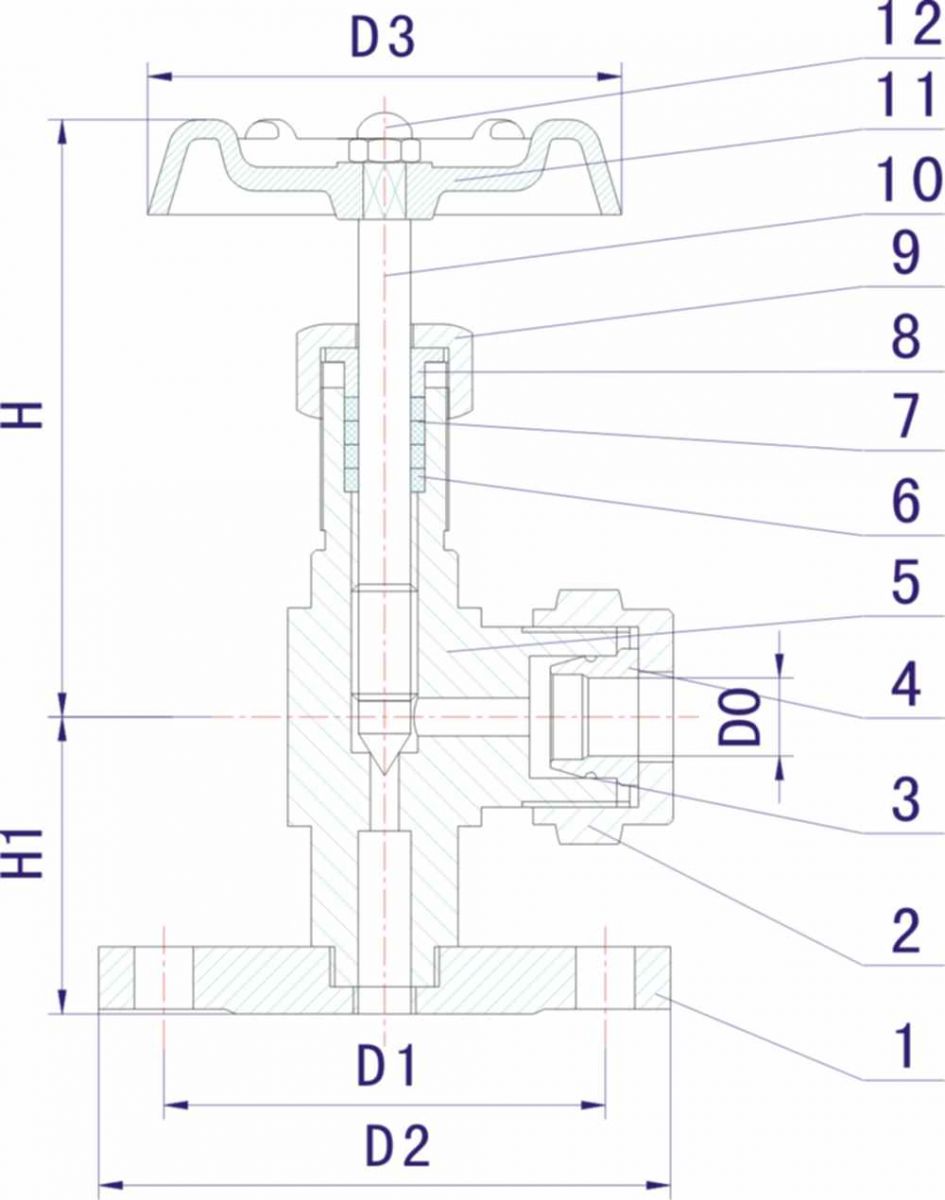

ITEM NO.
|
D0
|
D2
|
D3
|
H
|
H1
|
JX49W/H-1
|
ø19
|
ø96
|
ø60
|
97.5
|
47
|
JX49W/H-2
|
ø19
|
ø104
|
ø60
|
97.5
|
49
|
JX49W/H-3
|
ø19
|
ø112
|
ø60
|
97.5
|
47
|
