公稱壓力MPa
|
試驗(yàn)壓力
|
工作溫度
|
適用介質(zhì)
|
|
殼體MPa
|
密封MPa
|
|||
0.6
|
0.9
|
0.66
|
≤80℃
|
紙漿、煤漿、水、灰渣
|
1.0
|
1.5
|
1.1
|
≤80℃
|
三、PZL43X鏈輪式漿液閥主要零部件材質(zhì)
體、蓋
|
閘閥
|
閥桿
|
密封面
|
不銹鋼、碳鋼、灰鑄鐵
|
碳鋼、不銹鋼
|
不銹鋼
|
橡膠、四氟、不銹鋼、硬質(zhì)合金
|

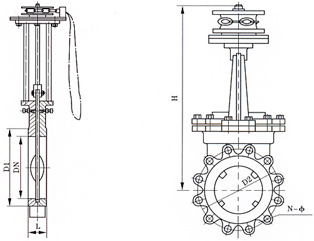

四、凱斯特牌PZL43鏈輪式漿液閥主要外形及連接尺寸(mm):
MPa
|
DN
|
L
|
D1
|
D2
|
H
|
n-M
|
MPa
|
DN
|
L
|
D1
|
D2
|
H
|
n-M
|
0.6
MPa |
50
|
48
|
90
|
110
|
325
|
4-M12
|
1.0
MPa |
50
|
48
|
100
|
125
|
325
|
4-M16
|
65
|
48
|
110
|
130
|
340
|
4-M12
|
65
|
48
|
120
|
145
|
340
|
4-M16
|
||
80
|
51
|
125
|
150
|
355
|
4-M16
|
80
|
51
|
135
|
160
|
355
|
4-M16
|
||
100
|
51
|
145
|
170
|
405
|
4-M16
|
100
|
51
|
155
|
180
|
405
|
8-M16
|
||
125
|
57
|
175
|
200
|
440
|
8-M16
|
125
|
57
|
185
|
210
|
440
|
8-M16
|
||
150
|
57
|
200
|
225
|
520
|
8-M16
|
150
|
57
|
210
|
240
|
520
|
8-M20
|
||
200
|
70
|
255
|
280
|
580
|
8-M16
|
200
|
70
|
265
|
295
|
580
|
8-M20
|
||
250
|
70
|
310
|
335
|
670
|
12-M16
|
250
|
70
|
320
|
350
|
670
|
12-M20
|
||
300
|
76
|
362
|
395
|
820
|
12-M20
|
300
|
76
|
368
|
400
|
820
|
12-M20
|
||
350
|
76
|
412
|
445
|
925
|
12-M20
|
350
|
76
|
428
|
460
|
925
|
16-M20
|
||
400
|
89
|
462
|
495
|
1030
|
16-M20
|
400
|
89
|
482
|
515
|
1030
|
16-M22
|
