零件名稱
Part name |
閥桿、閥蓋、螺栓
Body 、Bonnet、Bolt |
閥桿、閥瓣、密封墊 Stem、Disc、Gasket
|
填料
Packing |
墊片Gasket
|
手輪Handwheel
|
JJY1-320-DN5
|
鉻鎳不銹鋼
Cr. Ni Stainless steel |
不銹鋼
Stainless steel |
聚四氟乙稀,柔性石墨
PTFE,Soft graphite |
橡膠石棉板 Latex asbestos
|
優質碳鋼High grade carbon steel
|
型號
Type |
公稱壓力PN Mpa
|
試驗壓力PS(Mpa)_Test pressure
|
工作壓力(Mpa) Working pressure
|
工作溫度(OC) Working temps.
|
適用介質Applicable medium
|
||
殼體
Shell |
密封(液)Seal
|
密封(氣)Seal
|
|||||
JJY1-320-DN5
|
32.0
|
48.0
|
35.2
|
0.6
|
32.0
|
P≤540OC
|
液化石油氣水,酸,蒸汽,油品等 Petroleum gas Water,As,Steam,Oil,etc.
|
C≤425 OC
|
型號
Type |
公稱直徑DN(mm)
|

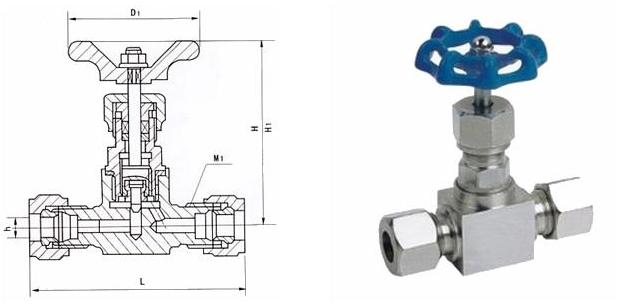

尺寸 Dimension
|
重量Weight
|
|||||
L
|
D1
|
H
|
H1
|
h
|
M1
|
|||
JJY1-320-DN5
|
5
|
104
|
65
|
104
|
112
|
14
|
M22×1.5
|
1.0
|
